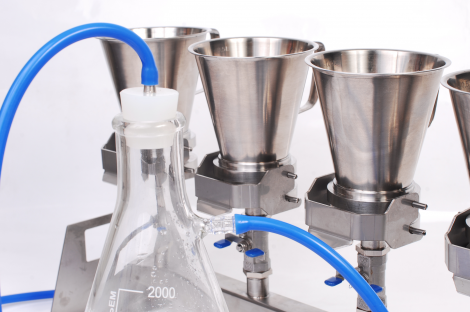

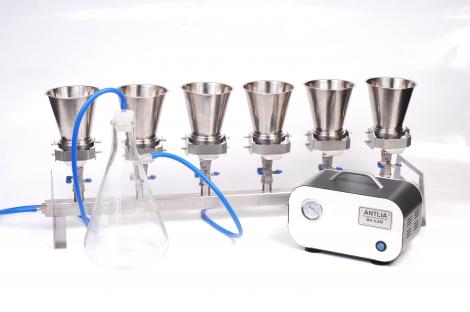

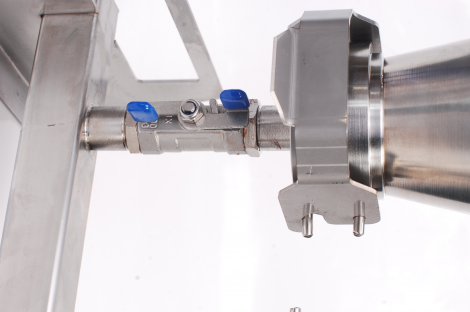

Vacuum filtering system CAPTRON-47\6

Vacuum filtering system with up to six parallel channels, perform effective filtering of water at standard 35 mm or 47 mm filters, polymer - or paper- based. Choice of filter type (pore size) vary from parasitology (lyamblia cysts separation), to hard particles separation (testing of colloid in water )  and microbiology (separation of bacteria at 200 - 400 nm pore size). The system includes glass flask for waste ware separation, vacuum manifold with valves, pipes and porous metallic fritta(s) made of titanium alloy.

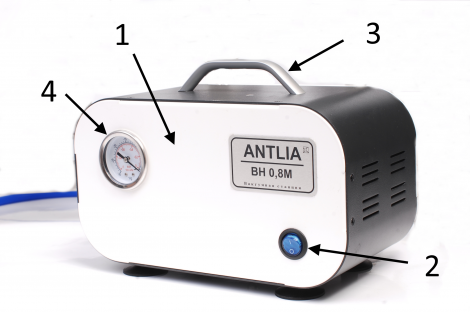

All parts are made of chemically - newtral materials , like stainless steel, titanium, silicone and glass. The vacuum pump can be ordered with regulator of negative pressure, and suction rate.

Number of channels:  6

Filter diameter : 47 mm

Power of pump:  50 W

Waste water capacity:  2000 ml

Length : 890 mm

Height: 385 mm

Depth: 210 mm

Weight of assembled manifold: 6.8 kg

Separation of micro- particles in water samples to test hard residue and turbidity;

Filtering of cysts in parasitology examination of natural and surface water sources;

Separation of bacteria for further colony count in microbiology;

Some applications in virusology (with membrane polymer filters of appropriate pore size);

Testing liquid fuels for detection of hard partiles, etc.

The Captron 47\6 can be ordered with autonomous power supply for work in field conditions.
